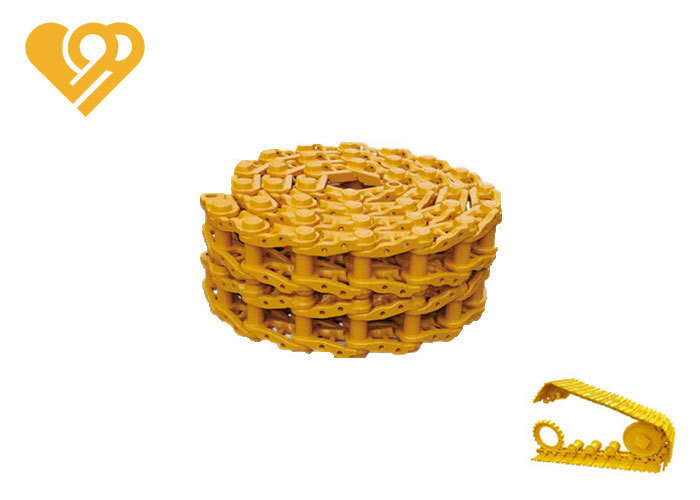

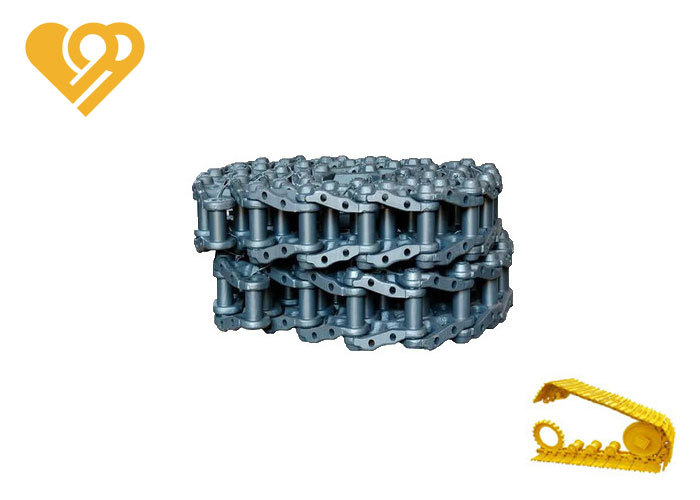

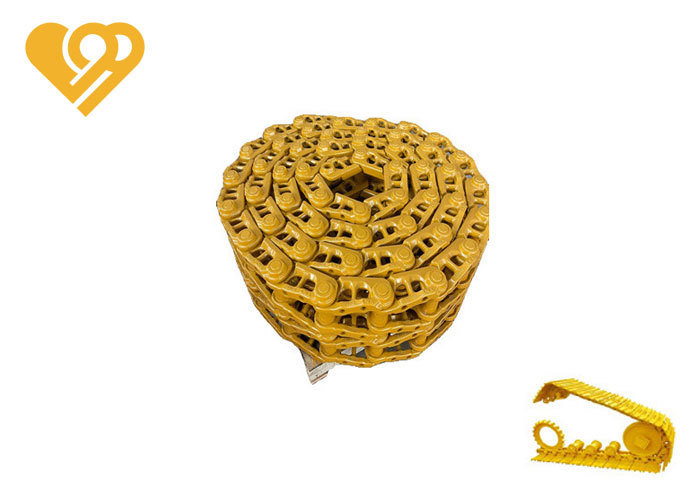

KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions

KOMATSU PC20 Track Chain Assembly with Mid-Frequency Heat-Treatment Technology Self-Lubricated System and Precision Assembly Dimensions

পণ্যের বিবরণ:
উৎপত্তি স্থল:	চীন (মূল ভূখণ্ড)
পরিচিতিমুলক নাম:	YT
মডেল নম্বার:	পিসি২০
প্রদান:
ন্যূনতম চাহিদার পরিমাণ:	1 পিসি
মূল্য:	negotiable
প্যাকেজিং বিবরণ:	রফতানি প্যাকেজিং
ডেলিভারি সময়:	7-30 দিন
পরিশোধের শর্ত:	এল/সি, টি/টি
যোগানের ক্ষমতা:	10000 পিসি/মাস

এখন যোগাযোগ

বিস্তারিত তথ্য
উপাদান:	40Mn2 বা 35MnBH ইস্পাত	কৌশল:	Forging এবং তাপ চিকিত্সা
গুণ:	তাপ চিকিত্সা HRC 40-55	মূল্য মেয়াদ:	FOB/ CFR/CIF/EXW
রঙ:	হলুদ বা কালো	ওয়ারেন্টি সময়:	12-18 মাস
শর্ত:	নতুন	ওজন:	Al চ্ছিক
বিশেষভাবে তুলে ধরা:	Mid-Frequency Heat-Treatment Technology Track Chain Assembly , Self-Lubricated System Track Link Group , Precision Assembly Dimensions Excavator Undercarriage Spare Parts

পণ্যের বর্ণনা

KOMATSU Excavator Undercarriage Spare Parts PC20 Track Chain Assembly

OEM Track Link Group With Mid-Frequency Heat-Treatment Technology

Track Link Features

Utilizing sophisticated machining centers, including horizontal and vertical CNC technology, we perform precision operations like cutting, boring, tapping, and grinding to guarantee component quality and accuracy. This ensures precise assembly dimensions while extending component lifespan and minimizing hourly production expenses.

Track links are manufactured from 35 MNB forged special steel, reinforced with advanced structure technology and heat treatment processes. This combination delivers maximum strength and abrasion resistance. The integrated self-lubricated system significantly enhances track chain bearing service life.

Main Dimensions of Installation

Suitable Model	P	A	B	C	E	F	H	K	L
EX30/EX35/PC20/PC30/PC35R	101.6	55	55	22	10.5	35	76	63	26
IHI30J	101.6	64	64	22	10.5	44	85	63	26
PC20	101.6	52	52	22	10.5	32	73	65	28
YC35	101.6	55	55	22	12.5	35	77	70	30
TM20	101.6	55	55	22	10.5	34	72	61	29.5
PC40-7/SK45	135	93.8	63.8	46	12.5	40.4	87.4	65	30
EX40/EX45	135	104	80	46	12.5	52	105	65	30
PC60-6/PC75/SK60	154	89	73	57	14.5	45	104	74	33.5
PC100-1/2/PC100-3/HD350	154	112.4	82.4	57	14.5	49.4	124.4	87	40
EX60-1/2/3/5	154	90	90	55	14.5	56	127	80	38

The models above are for reference only. We can supply additional products to meet your requirements. Please contact us with your specific needs.

Manufacturing Processes

Our Advantages

World-class quality components
Factory-direct pricing for cost efficiency
Flexible payment terms including T/T and L/C
Fast delivery within 30 days after contract confirmation
Comprehensive after-sale services including video technical support and 24/7 online assistance
